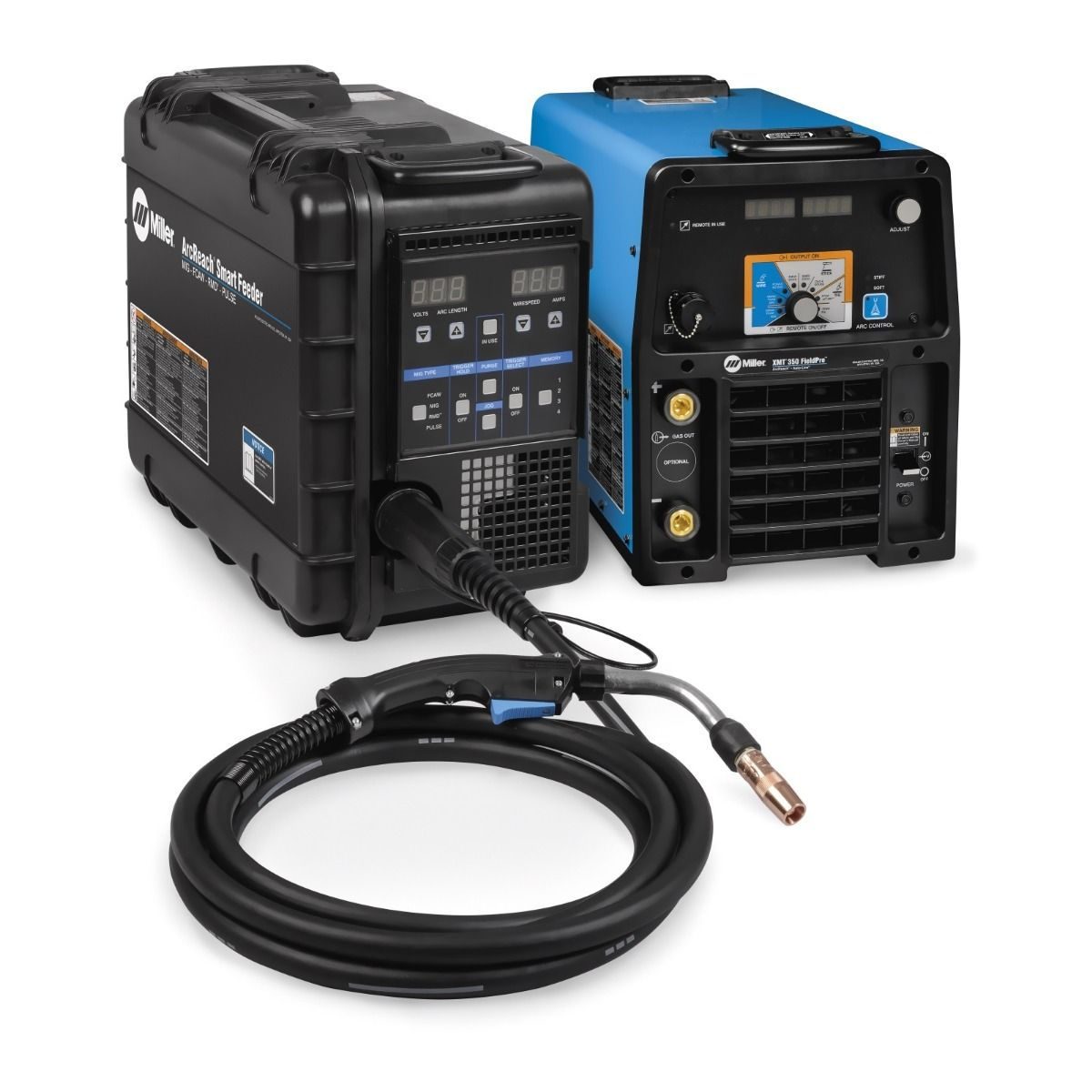

Miller XMT 350 FieldPro ArcReach w/ Smart Feeder Pkg (951738)

This Miller package (951738) combines the XMT 350 FieldPro ArcReach multiprocess power source with the ArcReach smart feeder for RMD and pulsed MIG welding up to 200 feet from the power source. The XMT has Auto-Line input from 208 to 575 V on 1- or 3-phase power.

Once the lead from the power source is connected, all controls shift to the smart feeder automatically. RMD (regulated metal deposition) and pulsed MIG allow procedures with one wire and one gas, removing process switch-over time, and can eliminate backing gas on some stainless and chrome-moly applications. ArcReach adds cable length compensation (CLC) without separate control cords.

The XMT power source has Adaptive Hot Start, infinite arc control, Lift-Arc, fan-on-demand, large dual digital meters and a process selector switch in an aerospace-grade aluminum case, with Tweco-style connectors. It delivers 5-425A over 10-38V at 60% duty cycle at 350A 3-phase or 300A 1-phase. The XMT weighs 93 lbs and the feeder 55 lbs.

Highlights

• ArcReach smart feeder for RMD and pulsed MIG

• Feeder works up to 200 feet from the power source

• Auto-Line 208-575V input, 1- or 3-phase

• 5-425A, 60% duty cycle at 350A 3-phase

• Tweco-style connectors

• XMT 93 lbs, feeder 55 lbs

Specifications

Good to know

• Check the input power requirements (voltage, phase and amperage) against your supply before ordering.
