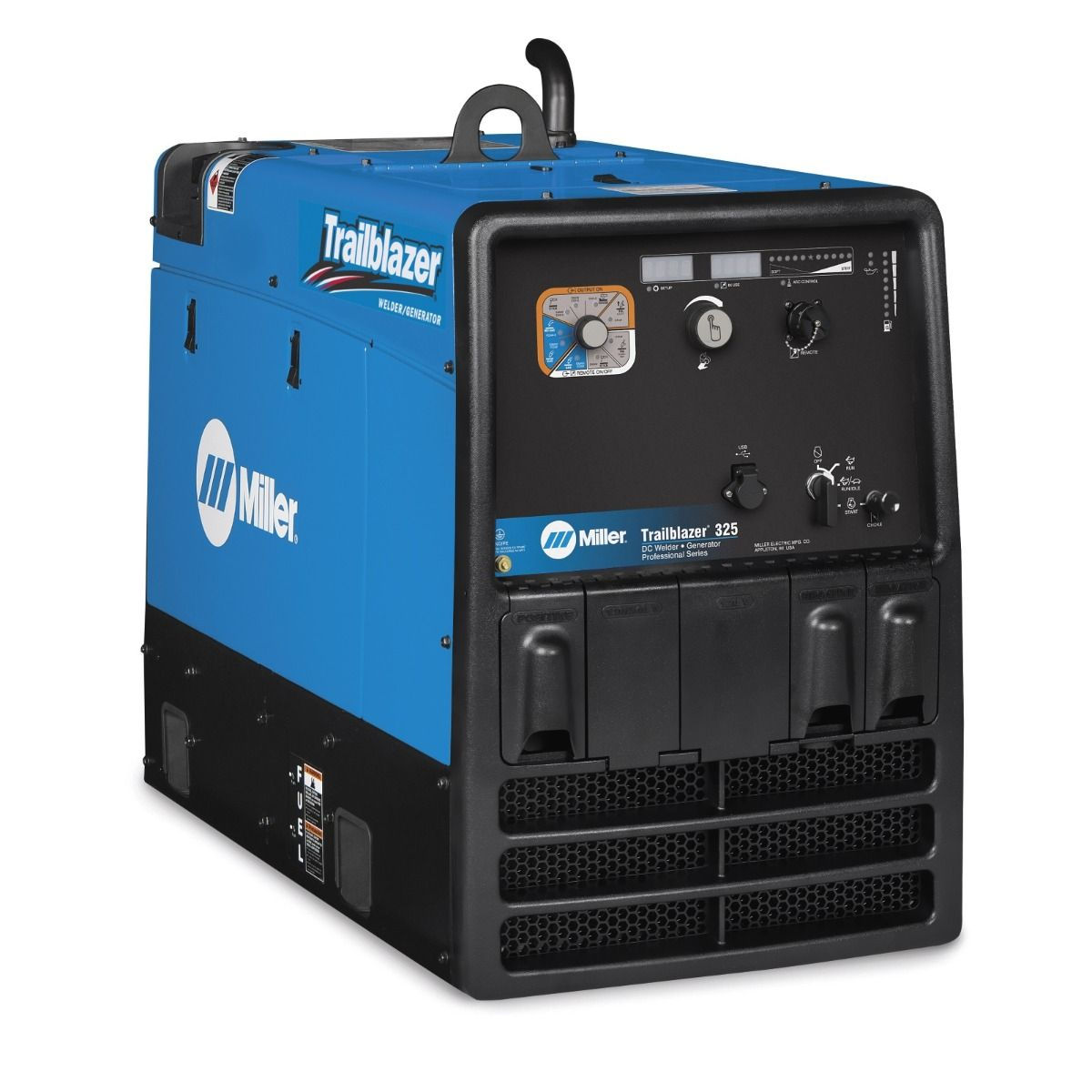

Miller Trailblazer 325 Kohler Engine Welder/Generator (907797)

The Miller Trailblazer 325 Kohler (907797) is an engine-drive welder/generator rated 325 A at a 100% duty cycle for stick, MIG, flux-cored and TIG welding, with ArcReach technology as standard. Its welder and generator are independent power systems.

Auto-Speed technology slows the engine when less power is needed and ramps it up automatically when the load increases or the process changes. The engine is turned toward the front with reversed generator airflow for a compact, cooler package, and Smart-Cor technology, with a 10-degree skewed rotor and Wave Filter, conditions the generator output.

The arc is tuned through three stick modes (XX18, XX10 and Gouge), two wire modes (Solid and Flux-Core) and three TIG modes (Auto-Stop, Auto-Crater and Pulse). TIG Pulse is aimed at out-of-position welding, thin metals and stainless steel where less heat is wanted, and infinite arc control is available in stick and solid wire modes.

Highlights

• Kohler engine drive

• 325 A output at 100% duty cycle

• ArcReach technology standard

• Auto-Speed engine speed management

• Three stick, two wire and three TIG modes

Specifications

Good to know

• Check the input power requirements (voltage, phase and amperage) against your supply before ordering.
