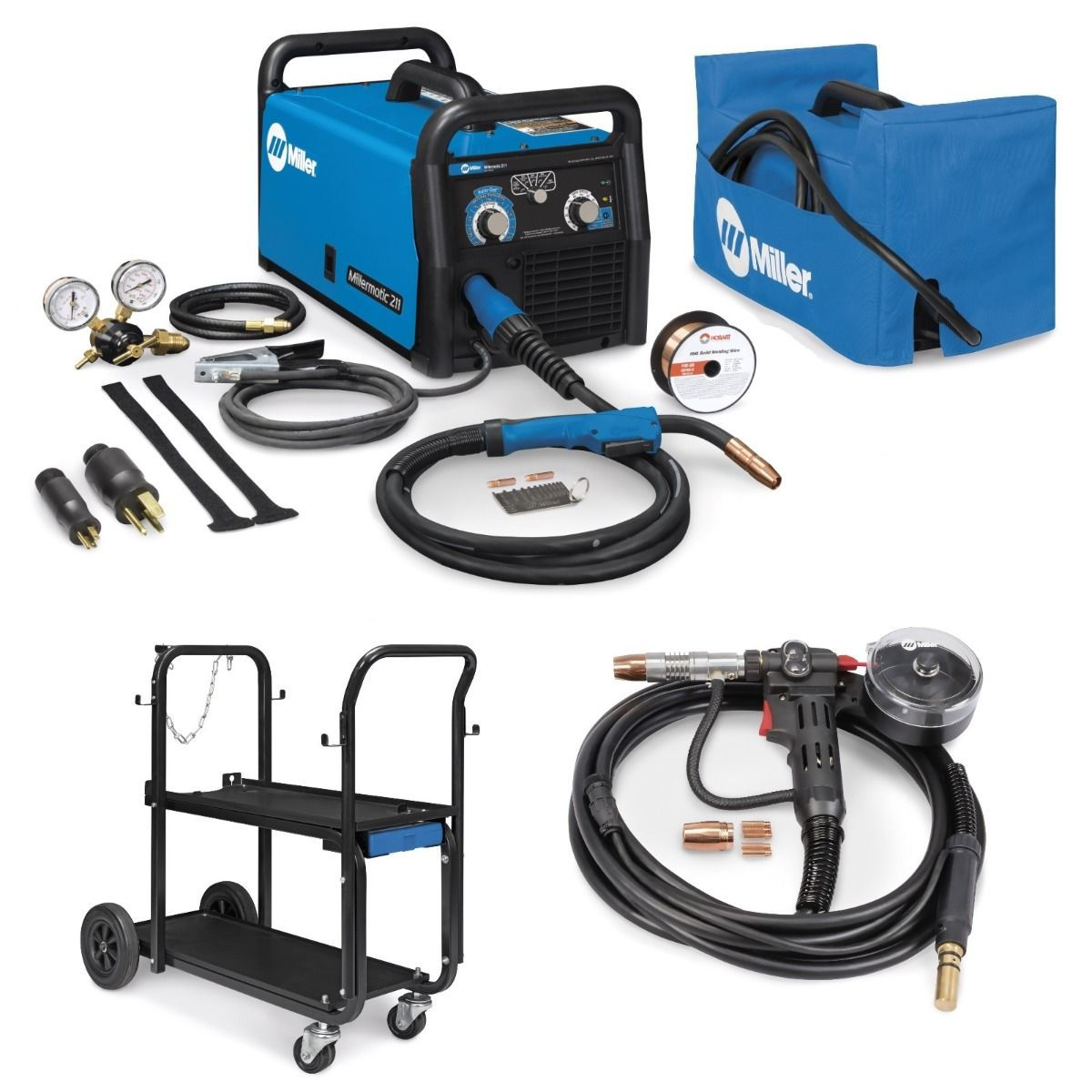

Miller Millermatic 211 MIG Welder with Spoolmate 150 and Accessories (907614)
This bundle combines the Miller Millermatic 211 (907614), a 120/230V single-phase inverter MIG and flux-cored welder, with a Spoolmate 150 spool gun and accessories. The welder detects the Spoolmate 150 when it is plugged in and configures itself for it.
Advanced Auto-Set sets the machine from the material type, gas, wire diameter and material thickness, and Manual mode is available for custom parameters on aluminum, stainless steel or mild steel. The welder runs .024, .030 and .035 in wire, welds up to 3/8 in in a single pass and weighs 38 lbs.
Smooth-Start is designed for clean, low-spatter starts, and the cast aluminum drive uses a dual-groove quick-change drive roll with a spring-loaded tension arm and calibrated knob. The Multi-Voltage Plug connects to common 120V or 240V receptacles without tools.
Highlights
Spoolmate 150 spool gun included
120V or 230V single-phase input
Duty cycle 20% at 90A (120V), 30% at 150A (230V)
Welds up to 3/8 in in a single pass
Advanced Auto-Set plus Manual mode
Welder weighs 38 lbs
Specifications
Brand | Miller |
Model | 907614 |
Input Voltage | 120V, 230V |
Phase | Single phase |
Max Amperage Output | 210 A |
Duty Cycle | 20% at 90A (120V), 30% at 150A (230V) |
Polarity | DC |
Process | MIG, flux-cored |
Material | Aluminum, mild steel, stainless steel |
Wire Diameter | .024, .030, .035 in |
Max Thickness | 3/8 in, single pass |
Weight | 38 lbs |
Bundle Part Numbers | 907614, 301272, 301239, 301262 |
Good to know
Check the input power requirements (voltage, phase and amperage) against your supply before ordering.
