Miller Maxstar 161 STL TIG and Stick Welder with Fingertip Control (907710002)

This Miller Maxstar 161 STL package (907710002) is a DC TIG and stick welder supplied with a WP-17 TIG torch, RCCS-6M fingertip remote, regulator and X-Case. The welder runs on auto-line 120 V and 240 V power cords, delivers up to 160 amps and weighs 13 lbs.

Setup is three steps: press the menu button to choose the process, hold it for one second for the user menu, then turn the encoder to set the parameter. The machine is DC only and will not TIG weld aluminum. Rated material thickness is .020 to 3/16 steel with electrodes up to 5/32 inch.

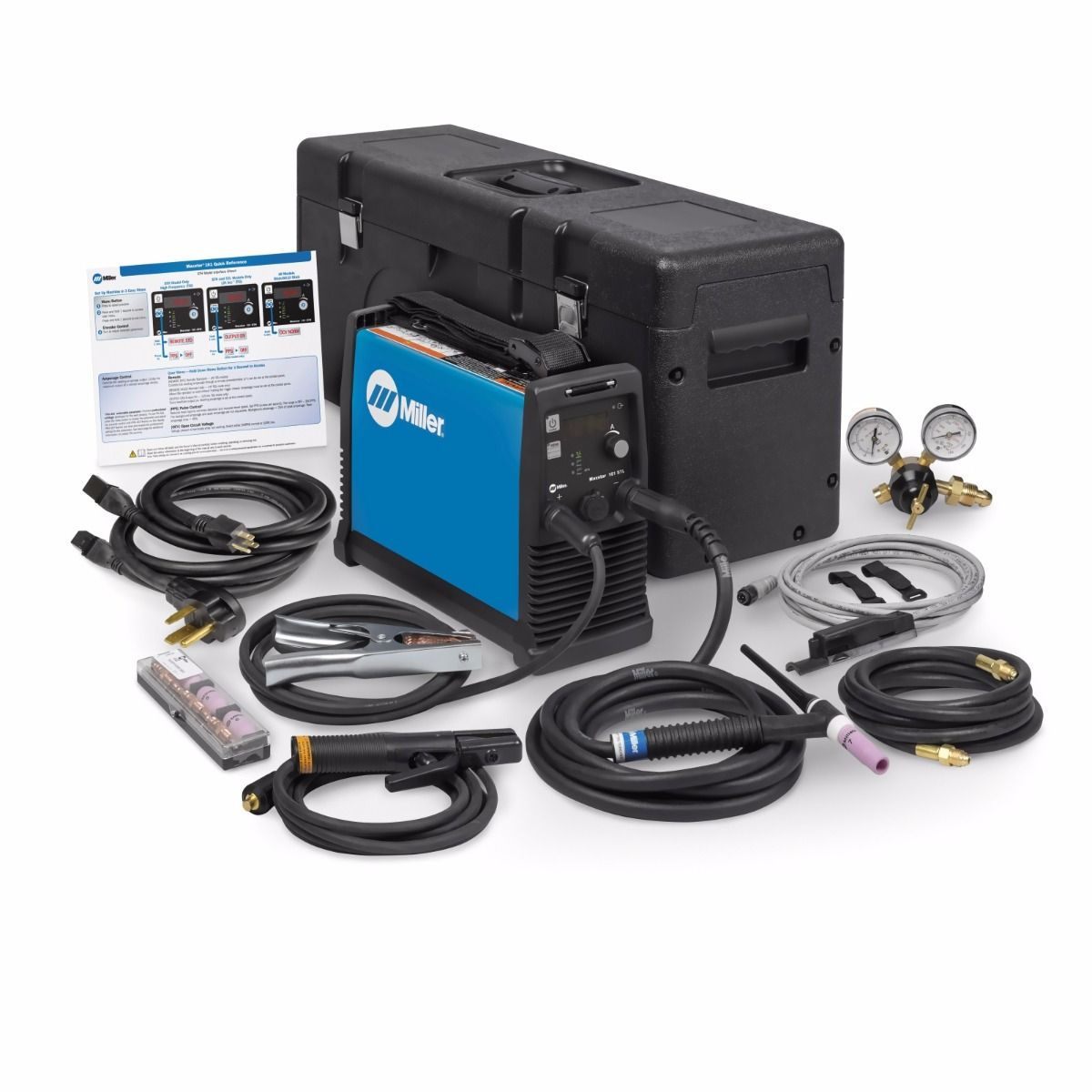

Included: the power source, 6.5 ft 120V and 240V power cords, a 13 ft stick electrode holder with 25 mm Dinse connector, a 10 ft work clamp, a 12.5 ft air-cooled WP-17 TIG torch with connector (195234), an RCCS-6M remote fingertip control (195184), an X-Case, a flow gauge regulator with gas hose, an AK2C accessory kit with 2% ceriated tungsten in .040, 1/16 and 3/32, and a shoulder strap and handle.

Highlights

• DC TIG and stick welding

• 12.5 ft WP-17 air-cooled TIG torch included

• RCCS-6M remote fingertip control included

• X-Case, regulator and AK2C accessory kit included

• Auto-line 120V and 240V power cords

• Will not TIG weld aluminum

Specifications

Good to know

• Check the input power requirements (voltage, phase and amperage) against your supply before ordering.
