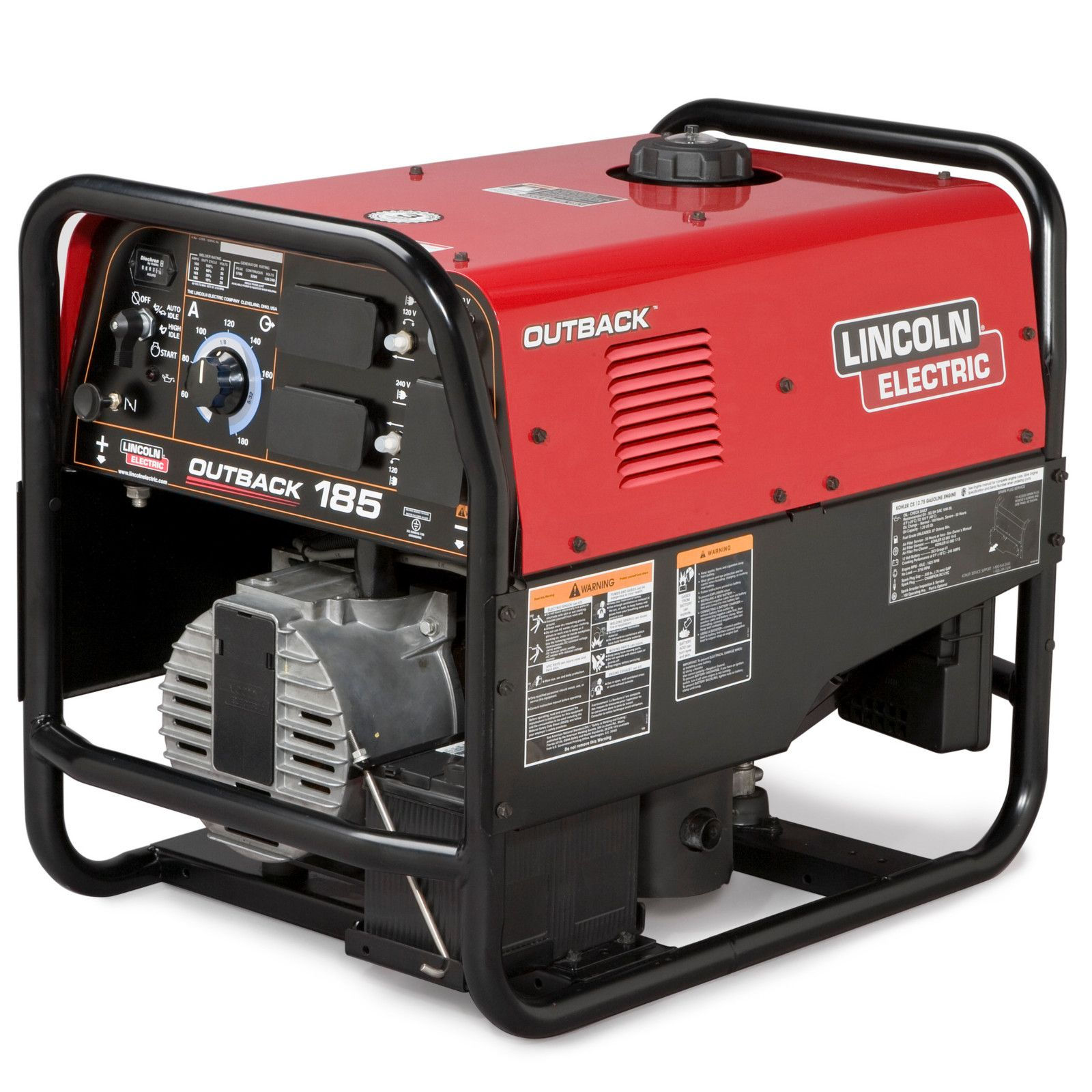

Lincoln Outback 185 Engine Welder Generator (K2706-2)
The Lincoln Outback 185 is a portable engine-drive welder generator for DC stick welding up to 185 A with 5,700 watts peak (5,200 watts continuous) AC generator power. All engine controls, including the electric start switch and choke, sit on the front panel.
The machine runs stick electrodes up to 5/32 inch (4 mm), with duty cycle rated 100% at 100 A, 60% at 130 A and 20% at 150 A. Generator power can run a grinder, lights or a pump, start motors or serve as emergency power. A Lincoln Power MIG 140C or 180C can be plugged in for wire welding, and a Lincoln Tomahawk 375 Air for cutting metal. Low-lift grab bars on both ends and a 6.8-gallon (25.7 L) tank with a large fill opening are fitted.
Highlights
DC stick output up to 185 A
5,700 W peak, 5,200 W continuous AC generator power
Stick electrodes up to 5/32 in (4 mm)
Electric start and choke on the front control panel
6.8-gallon (25.7 L) fuel tank, low-lift grab bars
Runs Power MIG 140C/180C or Tomahawk 375 Air
Specifications
Brand | Lincoln Electric |
Model | K2706-2 |
Process | Stick |
Polarity | DC |
Max Amperage Output | 185 A |
Duty Cycle | 100% at 100 A, 60% at 130 A, 20% at 150 A |
Generator Output | 5,700 W peak / 5,200 W continuous |
Max Electrode | 5/32 in (4 mm) |
Starting | Electric start |
Fuel Tank | 6.8 gallons (25.7 L) |
Phase | Single Phase |
Weight | 325 lbs |
Good to know
Check the input power requirements (voltage, phase and amperage) against your supply before ordering.
