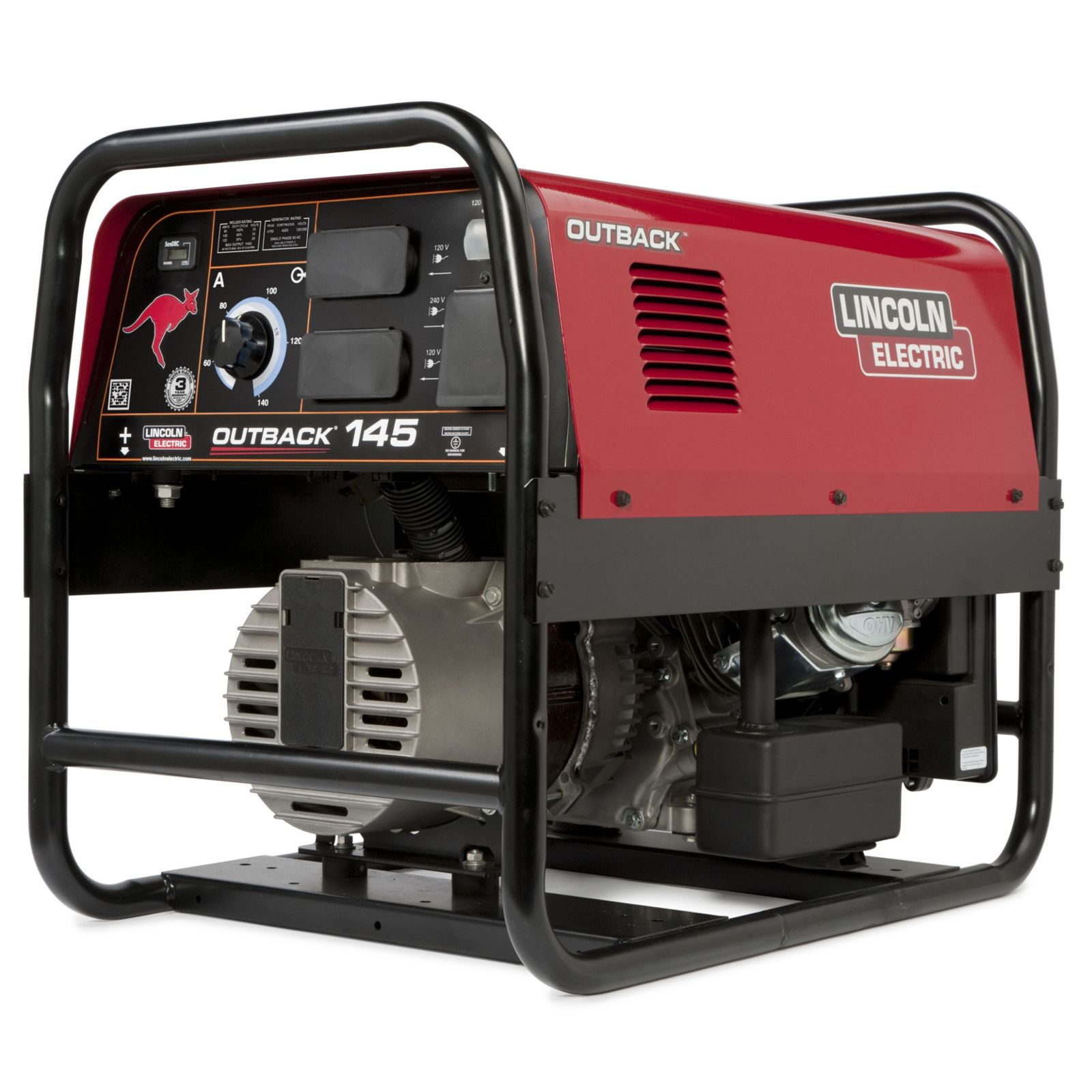

Lincoln Outback 145 Engine Welder Generator (K2707-2)
The Lincoln Outback 145 is a portable engine-drive welder generator providing DC stick welding up to 145 A and 4,750 watts peak (4,250 watts continuous) AC power. It suits service trucks, fence contractors, farms, ranches and maintenance crews.
The welder runs stick electrodes up to 1/8 inch (3.2 mm), with duty cycle rated 30% at 125 A, 60% at 100 A and 100% at 80 A. Generator power can run a grinder, lights or a pump, start motors or act as emergency power, and a Lincoln Power MIG 140C or Power MIG 180C can be plugged in for wire welding. Low-lift grab bars help lift it onto truck beds and add protection, and the 6.8-gallon (25.7 L) fuel tank has a large fill opening.
Highlights
DC stick output up to 145 A
4,750 W peak, 4,250 W continuous AC generator power
Stick electrodes up to 1/8 in (3.2 mm)
6.8-gallon (25.7 L) fuel tank with large fill opening
Low-lift grab bars
Runs a Power MIG 140C or 180C for wire welding
Specifications
Brand | Lincoln Electric |
Model | K2707-2 |
Process | Stick |
Polarity | DC |
Max Amperage Output | 145 A |
Duty Cycle | 30% at 125 A, 60% at 100 A, 100% at 80 A |
Generator Output | 4,750 W peak / 4,250 W continuous |
Max Electrode | 1/8 in (3.2 mm) |
Fuel Tank | 6.8 gallons (25.7 L) |
Phase | Single Phase |
Weight | 285 lbs |
Good to know
Check the input power requirements (voltage, phase and amperage) against your supply before ordering.
