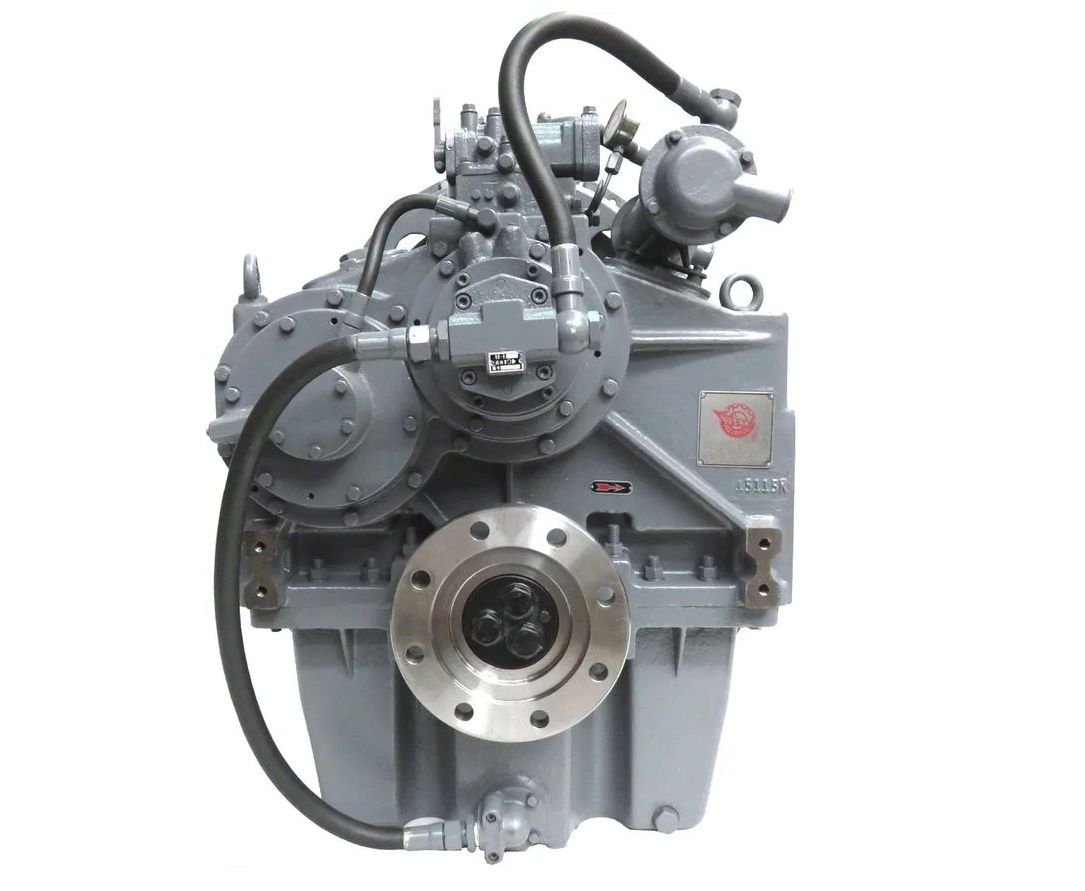

Advance HCD400A Heavy Duty Marine Gearbox, 5.89:1 Reduction
Advance's HCD400A heavy-duty hydraulic marine gearbox for commercial applications, supplied in the 5.89:1 reduction ratio. The 5.89:1 version is rated 0.37 hp per RPM and accepts up to 1800 RPM at the input.
Engine mating is through an SAE1 or SAE0 adaptor plate with a 14-, 16- or 18-inch drive plate, and control can be mechanical or electronic. Options include a live PTO and a gearbox oil cooler. This HCD400A weighs 1100 kg, has a 355 mm drop center and dimensions of 843 x 1010 x 1066 mm.
Highlights
5.89:1 reduction ratio, rated 0.37 hp/RPM
Accepts input speeds up to 1800 RPM
SAE1 or SAE0 adaptor plate options
Mechanical or electronic control
Optional live PTO and gearbox oil cooler
Specifications
Brand | Advance |
Model | Advance HCD400A |
Reduction Ratio | 5.89:1 |
Power Rating | 0.37 hp/RPM |
Max Input Speed | 1800 RPM |
Adaptor Plate Options | SAE1, SAE0 |
Control Options | Mechanical, electronic |
Drive Plate Options | 14", 16", 18" |
Live PTO | Optional |
Oil Cooler | Optional |
Weight | 1100 kg |
Drop Center | 355 mm |
Dimensions | 843 x 1010 x 1066 mm |
Good to know
Installation, rigging and commissioning by a qualified marine technician are recommended; follow the manufacturer's pre-delivery and break-in procedures.
